Product Dimensions 39"h x 21"w x 25.25"d

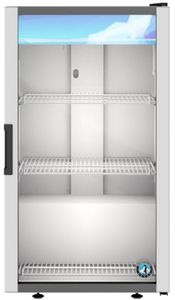

The RM-7-HC Glass Door Merchandiser is a single section countertop refrigerator with a full glass swing door is the perfect beverage or packaged product display for any operation. It boasts an impressive storage capacity of 7ft3 (102: 20oz bottles, or : 12oz cans).Read More
The durable 1/8 HP motor that powers the compressor in the bottom of this unit efficiently cools the interior cabinet with a forced air evaporator for quick cool down. It’s Automatic hot gas loop on front edge of cabinet prevents condensation particularly in hot humid environments!
Storage capacity of 7ft3 (102: 20oz Bottles, or : 12oz Cans)
Nominal Compres. of 582 BTU/hr at 1/8 HP
Electrical consumption of 1.38 kWh/day at 3.2 Amps, 8 ft long cord with a 5 – 15P NEMA plug
Listed under NSF/ANSI Std 7 for the storage and/or display of packaged or bottled product
Large glass swinging door is energy efficient Low-E multi pane glass
Door frame recessed handle
Doors are mounted on heavy duty hinges with self-closing mechanism
Forced air evaporator for quick temperature pull down
Insulated with environmentally friendly CFC-Free Polyurethane with cyclopentane blowing agent
Silver painted aluminum exterior, white steel interior with stainless steel floor
Dependable interior dial controller and side mount themometer (°F or °C)
R290 refrigerant
Energy efficient LED interior product lights
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 8 ft. cord and plug, Energy Consumption: 1.38 kwh/day, Amperage: 3.2, Max Fuse/HACR Breaker: 15 A
Ambient Temp Range: 60 – 86°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 39°F, Refrigerant: R290
Nominal Compres. of 582 BTU/hr at 1/8 HP, Heat Rejection: N/A BTU/hr
Nominal storage capacity: 7 ft3, 20oz bottle capacity: 102, Door opening: 44.88″ W x 36.625″ H, Depth with doors fully extended: 21.25″ D, Shelves included: 2 adjustable, 1 floor
General Specs | |
| Width (in.) | 21 |
| Depth (in.) | 25.25 |
| Height (in.) | 39 |
| Total Capacity (cu. ft.) | 7 |
| Color | Silver |
| Depth w/Door Open 90 Degrees (in.) | 47.88 |
| Door Color | Silver |
| Handle Color | Black |
| Manufacturer Warranty | 3 Years Parts & Labor on Entire Machine/ 5 Years Compressor |
| Door Panel Type | Glass |
| Color/Finish Name | Silver |
| Appliance Fit Width (in.) | 21 |
| Ice Maker | No |
| Door Swing Option | Left Hinge |
| Depth Type | Standard Depth |
| Defrost System | Manual |
| Number of Doors | 1 |
| ENERGY STAR Certified | No |
| Commercial Use Approved | Yes |
| Installation Type | Freestanding |
| ADA Compliant | No |
| Smart Compatible | No |
| Shipping Depth (in.) | 24.5 |
| Shipping Width (in.) | 28 |
| Shipping Height (in.) | 44 |
| Voltage | 115 |
| Frequency | 60 |
| Amp | 3.2 |
| Type of Refrigerator | Under The Counter Refrigerator |
| Defrost Type | Manual Defrost |
| Refrigeration General Features | See-Thru Door |
| Overall Height (in.) | 39 |
| Freezer Door Type | Swing Door |
| Garage Ready | No |
