Product Dimensions 31.9"h x 27"w x 31.5"d

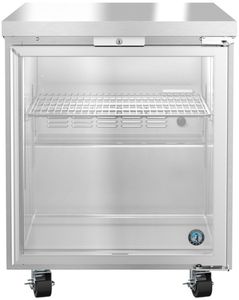

The UF27B-GLP01 Steelheart Series Undercounter single section low profile freezer with a full glass door is space saving workhorse. Engineered to maintain food safe temperatures in 80°F ambient conditions with a net capacity of 6.21 cubic feet this efficient undercounter low profile freezer and front air flow design is perfect for hot/tight kitchens.Read More
Innovative air distribution system distributes air evenly to maintain product temperature
Enamel coated evaporator coil for extended life
Glass door front, stainless steel exterior (sides, top) and a stainless steel interior
Field reversible, spring assisted self closing door with stay open feature (no kit required)
One piece, full door length chrome handle per door
(1) stainless steel door with ABS interior liner
Insulated with 2″ CFC free, foamed in place polyurethane
(1) epoxy coated wire shelf adjustable in 1/2″ increments on anodized aluminum supports
Engineered to maintain food safe temperatures in 80°F ambient conditions
R290 refrigerant
(4) 2.25″ Stem Casters (2 with brakes) are standard
Optional Kits: 4″ or 6″ casters, epoxy wire shelf, stainless steel shelf, over shelves, foot pedals
Nominal Compres. of 1425 BTU/hr at 3/4 HP
115v/60/1, 10 ft. cord and plug
General Specs | |
| Width (in.) | 27 |
| Depth (in.) | 31.5 |
| Height (in.) | 31.9 |
| Manufacturer Warranty | 7 Years Labor, Parts and Compressor |
| Color | Stainless Steel |
| Depth w/Door Open 90 Degrees (in.) | 54.5 |
| Installation Type | Freestanding |
| Door Color | Clear |
| Depth Type | Counter Depth |
| Overall Height (in.) | 31.9 |
| Collection Code | UF27B |
| Door Panel Type | Glass |
| Garage Ready | No |
| Color/Finish Name | Stainless Steel |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Ice Maker | No |
| Smart Compatible | No |
| Shipping Depth (in.) | 31.5 |
| Shipping Width (in.) | 36 |
| Shipping Height (in.) | 35.5 |
| Voltage | 104-126 |
| Amp | 3 |
Other Dimensions | |
| Voltage | 115/60/1 |
| HACR Breaker | 15.0 Amps |
| Electrical Connection (NEMA) | 5-15P |
| Ambient Temperature Range | 45 to 80°F |
| Control Setpoint Range | -10° to 10°F |
| Energy Consumption (kWh/day) @NSF | 4.32 |
| Heat Rejection (BTU/Hr.) @NSF | 468 |
| Approximate Nominal Compres. BTU/HR (HP) | 798 (1/5HP) |
| Refrigerant / Charge Amount (oz) | R290 (1.9 oz) |
| Door Opening Width x Height | 22.75” x 23” |
| Shelf Dimensions (W x D) | 22” x 16” |
| Interior Storage Capacity (CF) (AHAM) | 6.21 ft3 |
