Product Dimensions 40"h x 27"w x 30"d

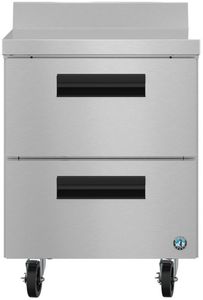

The WF27B-D2 Steelheart Series Worktop single section freezer with stainless drawers is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions with a net capacity of 6.21 cubic feet this efficient worktop freezer and front air flow design is perfect for hot/tight kitchens.Read More
Innovative air distribution system distributes air evenly to maintain product temperature
Enamel coated evaporator coil for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
The drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers
Extruded aluminum flush mount drawer handles
(2) stainless steel drawers, fully welded construction and securely fastened in the cabinet
Insulated with 2″ CFC free, foamed in place polyurethane
Engineered to maintain food safe temperatures in 100°F ambient conditions
R290 refrigerant
(4) 6″ Stem Casters (2 with brakes) are standard
Nominal Compres. of 1354 BTU/hr at 1/5 HP
115v/60/1, 10 ft. cord and plug
Automatic time-initiated heated defrost
Optional Kits: 2.25″ or 4″ casters, 6″ legs, overshelves, stainless steel back, drawer divider bars, see spec sheet for additional options
Drawers Capacity: Top: (1) 12″ x 20″ full size pan and (2) 1/4 size pans. Bottom: (1) full size pan (pans by others)
General Specs | |
| Width (in.) | 27 |
| Depth (in.) | 30 |
| Height (in.) | 40 |
| Defrost System | Automatic |
| Manufacturer Warranty | 7 Years Labor, Parts and Compressor |
| Color | Stainless Steel |
| Installation Type | Freestanding |
| Depth Type | Counter Depth |
| Overall Height (in.) | 40 |
| Collection Code | WF27B |
| Door Panel Type | Solid |
| Garage Ready | No |
| Color/Finish Name | Stainless Steel |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Ice Maker | No |
| Smart Compatible | No |
| Shipping Depth (in.) | 31.5 |
| Shipping Width (in.) | 34 |
| Shipping Height (in.) | 40.5 |
| Voltage | 104-126 |
| Amp | 3 |
Other Dimensions | |
| Voltage | 115/60/1 |
| HACR Breaker | 15.0 Amps |
| Electrical Connection (NEMA) | 5-15P |
| Ambient Temperature Range | 45° to 100°F |
| Control Setpoint Range | -10° to 10°F |
| Energy Consumption (kWh/day) @NSF | 2.4 |
| Heat Rejection (BTU/Hr.) @NSF | 489 |
| Approximate Nominal Compres. BTU/HR (HP) | 1354(1/5HP) |
| Refrigerant / Charge Amount (oz) | R290 (1.9 oz) |
| Interior Storage Capacity (CF) (AHAM) | 6.21 ft3 |
| Interior Storage Capacity (CF) | 7.21 ft3 |
| Depth with Drawer Fully Open (including 1” bumper) | 51” |
