Product Dimensions 34.63"h x 30"w x 27.38"d

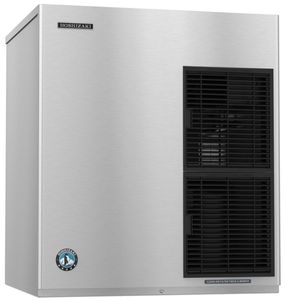

The F-1501MRJZ-SC is capable of producing approximately 1417 lbs of soft cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat.Read More
Up to 1417 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces soft cubelet nugget-style ice
R-404A refrigerant (5 lbs. 2.5 oz. / 2340 g)
2 second rinse every hour to remove sediment
Clean ice and easy maintenance lead to longer unit life span
Compatible bins and dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 15.3, Max Fuse/HACR Breaker: 20 A
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 13800 BTU/hr, Refrigerant Charge: R-404A, (5 lbs. 2.5 oz. / 234
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
4.3 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
General Specs | |
| Depth (in.) | 27.38 |
| Height (in.) | 34.63 |
| Color | Stainless Steel |
| Door Color | Black |
| Commercial Use Approved | Yes |
| Series | Cubelet |
| Color/Finish Name | Stainless Steel |
| Installation Type | Freestanding |
| Overall Height (in.) | 34.63 |
| Garage Ready | No |
| Production Rate Ice (lb./day) | 1417 |
| Width (in.) | 30 |
| Manufacturer Warranty | 3 Years Parts & Labor on Entire Machine |
| Outdoor Approved | No |
| ENERGY STAR Certified | No |
| Appliance Fit Width (in.) | 30 |
| Smart Compatible | No |
| Wifi Capable | No |
| Defrost System | Manual |
| ADA Compliant | No |
| Locking Door | No |
| Product Weight (lbs.) | 300 |
| Voltage | 208/230 |
| Frequency | 60 |
| Amp | 15.3 |
| Number Of Possible Ice Cube Shapes | 1 |
| Ice Type | Nugget |
| Door Panel Type | Panel |
