Product Dimensions 87.5"h x 35"w x 34.5"d

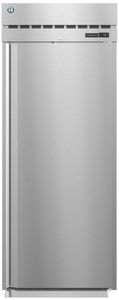

The RT1A-FS-FS Steelheart Series Roll-Thru single section refrigerator with a full stainless door is a space saving workhorse. Stainless steel ramp, stainless steel interior rack guides, and insulated stainless steel floor. This efficient roll-thru refrigerator and front air flow design is perfect for hot/tight kitchens.Read More
Exclusive “stepped” door design to protect recessed door gasket
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Stainless steel interior and exterior
Sturdy 8 gauge stainless steel door hinges with welded pins are spring assisted self-closing and include a stay open feature
One piece, full door length, extruded aluminum flush mount door handle
Energy efficient thermostatic expansion valve self contained refrigeration system
Insulated with 2 3/8″ CFC free, foamed in place polyurethane
Interior LED light bar is mounted horizontally on the ceiling
Stainless steel ramp, stainless steel interior rack guides, and insulated stainless steel floor
R290 refrigerant
Standard with 4″ ramp
Unique “ducted” air distribution system
Nominal Compres. of 2750 BTU/hr at 1/2 HP
115v/60/1, 10 ft. cord and plug
Energy efficient automatic hot gas condensate evaporator
General Specs | |
| Width (in.) | 35 |
| Depth (in.) | 34.5 |
| Height (in.) | 87.5 |
| Color | Stainless Steel |
| Depth w/Door Open 90 Degrees (in.) | 98.5 |
| Door Color | Stainless Steel |
| Handle Color | Stainless Steel |
| Manufacturer Warranty | 7 Years Labor, Parts and Compressor |
| Fingerprint Resistant Finish | No |
| Collection Code | RN1A |
| Door Panel Type | Solid |
| Color/Finish Name | Stainless Steel |
| Ice Maker | No |
| Depth Type | Counter Depth |
| Ice/Water Dispenser | No |
| Number of Doors | 1 |
| ENERGY STAR Certified | No |
| Commercial Use Approved | No |
| Custom Panel Ready | No |
| Installation Type | Freestanding |
| ADA Compliant | No |
| Smart Compatible | No |
| Shipping Depth (in.) | 39 |
| Shipping Width (in.) | 40.5 |
| Shipping Height (in.) | 93.5 |
| Voltage | 104-126 |
| Amp | 6.4 |
| Type of Refrigerator | Freezerless Refrigerator |
| Refrigeration Dispenser Features | No Dispenser |
| Ice Maker Type | None |
| Refrigeration General Features | Locking Door, Interior Light |
| Overall Height (in.) | 87.5 |
| Freezer Door Type | Swing Door |
| Garage Ready | No |
Other Dimensions | |
| Voltage | 115/60/1 |
| HACR Breaker | 15.0 Amps |
| Electrical Connection (NEMA) | 5-15P |
| Ambient Temperature Range | 45 to 100°F |
| Control Setpoint Range | 31° to 52°F |
| Energy Consumption (kWh/day) @NSF | 3.186 |
| Heat Rejection (BTU/Hr.) @NSF | 774 |
| Approximate Nominal Compres. BTU/HR (HP) | 2750(1/2HP) |
| Refrigerant / Charge Amount (oz) | R290 / (4.6 oz) |
| Door Opening Width x Height | 29.25” x 72.75” |
| Interior Storage Capacity (CF) (AHAM) | 38.13 ft3 |
| Overall Width x Depth (with ramp) | 35” x 45.5” |
