Product Dimensions 44.25"h x 36"w x 34"d

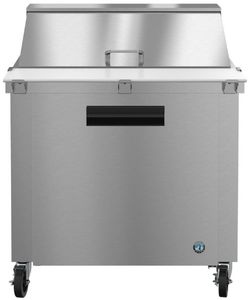

The SR36B-15M Steelheart Series Mega Top single section refrigerator with a stainless door is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 8.7 cubic feet this efficient mega top refrigerator and front air flow design is perfect for hot/tight kitchens.Read More
The SR36B-15M is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean. The SR36B-15M also includes (1) epoxy coated wire shelf adjustable in 1/2″ increments on anodized aluminum supports, (4) 6″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 1.82 kWh/day at 2.3 Amps, 10 ft long cord with a 5 – 15P NEMA plug. 36″ x 10″ x 0.5″ thick white polyethylene cutting board is standard. The unit is ETL Safety (US & C) Listed, ETL Sanitation, Georgia Made Certified and includes a 7-7-7 Warranty (seven years labor, seven years parts, seven years compressor — visit hoshizakiamerica.com/support/warranty for eligibility information).
Net capacity of 8.7 cubic feet
Innovative air distribution system distributes air evenly to maintain product temperature
Enamel coated evaporator coil for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
Extruded aluminum flush mount door handle
(1) stainless steel door with ABS interior liner
Insulated with 2″ CFC free, foamed in place polyurethane
(1) epoxy coated wire shelf adjustable in 1/2″ increments on anodized aluminum supports
Engineered to maintain food safe temperatures in 100°F ambient conditions
R290 refrigerant
(4) 6″ Stem Casters (2 with brakes) are standard
Includes (15) polycarbonate plastic 1/6th size pans, 4″ deep (can accept 6″ deep pans)
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 1.82 kwh/day, Amperage: 2.3, Max Fuse/HACR Breaker: 15 A
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 52°F, Refrigerant: R290
Nominal Compres. of 1354 BTU/hr at 1/5 HP, Heat Rejection: 258 BTU/hr
Nominal storage capacity: 9.9 ft3, Interior storage capacity: 8.7 ft3, Door opening: 25.5″ W x 23″ H, Depth with door fully extended: 58.5″ D, Shelves included: 1
General Specs | |
| Width (in.) | 36 |
| Depth (in.) | 34 |
| Height (in.) | 44.25 |
| Total Capacity (cu. ft.) | 9.9 |
| Color | Stainless Steel |
| Depth w/Door Open 90 Degrees (in.) | 57.5 |
| Door Color | Stainless Steel |
| Handle Color | Black |
| Manufacturer Warranty | 7 Year Warranty on Labor, Parts, & Compressor |
| Door Panel Type | Solid |
| Color/Finish Name | Stainless Steel |
| Appliance Fit Width (in.) | 36 |
| Ice Maker | No |
| Door Swing Option | Left Hinge |
| Depth Type | Standard Depth |
| Defrost System | Automatic |
| Number of Doors | 1 |
| ENERGY STAR Certified | No |
| Commercial Use Approved | Yes |
| Installation Type | Freestanding |
| ADA Compliant | No |
| Smart Compatible | No |
| Shipping Depth (in.) | 40.5 |
| Shipping Width (in.) | 36 |
| Shipping Height (in.) | 46.5 |
| Voltage | 115 |
| Frequency | 60 |
| Amp | 2.3 |
| Type of Refrigerator | Under The Counter Refrigerator |
| Defrost Type | Auto Defrost |
| Refrigeration General Features | Wheels |
| Overall Height (in.) | 44.25 |
| Freezer Door Type | Swing Door |
| Garage Ready | No |
