Product Dimensions 26"h x 36.5"w x 32.25"d

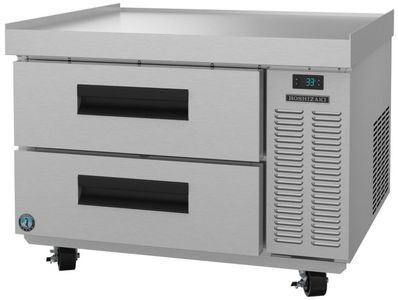

The CR36A single section refrigerated Chef Base makes it easy to increase productivity by keeping your refrigerated ingredients and cooking equipment in one, convenient location. The 26" high work surface, supports up to 1,000 lbs. of equipment and includes 2 stainless steel drawers.Read More
Each drawer accommodates (1) 12″ x 20″ x 6″ deep pan & (1) 1/2 long, 6″ deep pan (sold separately). The dependable 1/5 HP compressor motor distributes air evenly throughout the drawers and around the food product in the pans.
26″ high work surface, supports up to 1,000 lbs. of equipment
Innovative air distribution system distributes air evenly to maintain product temperature
Enamel coated evaporator coil for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
The drawer slides are constructed of 14 gauge stainless steel with durable acetal rollers
Extruded aluminum flush mount drawer handle
(2) stainless steel drawers, fully welded construction and securely fastened in the cabinet
Insulated with 2″ CFC free, foamed in place polyurethane
Drawers capacity: (1) 12″ x 20″ x 6″ deep pan & (1) 1/2 long, 6″ deep pan (pans by others)
Ceramic heat shield integral to 16 gauge stainless steel top protects food from high heat
R290 refrigerant
(4) 4″ HD Casters (All with brakes) are standard
Drawers are equipped with finger cut-outs for easy removal of pans
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 1.6 kwh/day, Amperage: 2.2, Max Fuse/HACR Breaker: 15 A
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 32 – 52°F, Refrigerant: R290
Nominal Compres. of 1354 BTU/hr at 1/5 HP, Heat Rejection: 223 BTU/hr
Nominal storage capacity: 6.88 ft3, Interior storage capacity: 6.12 ft3, Drawer opening: 36.5″ W x ” H, Depth with drawer fully extended: 55.75″ D, Drawers included: 2
General Specs | |
| Width (in.) | 36.5 |
| Depth (in.) | 32.25 |
| Height (in.) | 26 |
| Total Capacity (cu. ft.) | 6.88 |
| Color | Stainless Steel |
| Door Color | Stainless Steel |
| Handle Color | Black |
| Manufacturer Warranty | 7 Year Warranty on Labor, Parts, & Compressor |
| Door Panel Type | Solid |
| Appliance Fit Width (in.) | 36.5 |
| Ice Maker | No |
| Door Swing Option | Drawer |
| Depth Type | Standard Depth |
| Color Finish Name | Stainless Steel |
| Defrost System | Automatic |
| Number of Doors | 2 |
| ENERGY STAR Certified | No |
| Commercial Use Approved | Yes |
| Installation Type | Freestanding |
| ADA Compliant | No |
| Smart Compatible | No |
| Shipping Depth (in.) | 38 |
| Shipping Width (in.) | 34.5 |
| Shipping Height (in.) | 30.5 |
| Voltage | 115 |
| Frequency | 60 |
| Amp | 2.2 |
| Type of Refrigerator | Under The Counter Refrigerator |
| Defrost Type | Auto Defrost |
| Refrigeration General Features | Wheels |
| Overall Height (in.) | 26 |
| Freezer Door Type | Pull Out Drawer |
| Garage Ready | No |
