Product Dimensions 43.25"h x 46"w x 33.25"d

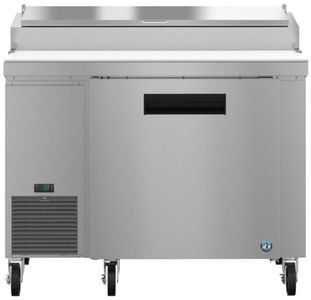

The PR46B is a Steelheart Series Pizza prep table, single section refrigerator with stainless door. Engineered to maintain food safe temperatures in 100°F ambient conditions and with a net capacity of 11.23 cubic feet, this front breathing prep table refrigerator is the right choice for hot kitchens.Read More
It features a dual controller system for ideal temperatures in both the rail and cabinet. The PR46B is constructed of stainless steel, which protects this unit from minor damage and rust. Plus, it is easy to clean. The PR46B includes (6) polycarbonate plastic 1/3rd size pans, 4″ deep (can accept 6″ deep pans). Equipped with a field reversible, spring assisted self closing door with stay open feature (no kit req’d). A 46″ x 19″ x 0.5″ thick white polyethylene cutting board is standard. Refrigerant flow is controlled with a capillary tube. The unit is ETL Safety (US & C) Listed, ETL Sanitation, Georgia Made Certified and includes a 7-7-7 Warranty (seven years labor, seven years parts, seven years compressor — visit hoshizakiamerica.com/support/warranty for eligibility information).
Net capacity of 11.23 cubic feet
Dual controller system for ideal temperatures in both the rail and cabinet
Improved airflow from back to front of the rail for more even cooling of all pans in the rail
Night/day mode conserves energy and prevents frostbite by dropping the set point to keep the food cool in rail when the lid is open
Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
Extruded aluminum flush mount door handle
(1) stainless steel door with ABS interior liner
(2) epoxy coated wire shelves adjustable in 1/2″ increments on anodized aluminum supports
Engineered to maintain food safe temperatures in 100°F ambient conditions
R290 refrigerant
(5) 6″ Stem Casters (2 with brakes) are standard
Electrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 5.69 kwh/day, Amperage: 6, Max Fuse/HACR Breaker: 15 A
Ambient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 16 – 36°F (rail) / 28 – 40°F (cabin), Refrigerant: R290
Nominal Compres. of 2431 BTU/hr at 1/3 HP, Heat Rejection: 808 BTU/hr
Nominal storage capacity: 11.23 ft3, Interior storage capacity: 11.23 ft3, Door opening: 25.5″ W x 23″ H, Depth with door fully extended: 60.5″ D, Shelves included: 2
General Specs | |
| Width (in.) | 46 |
| Depth (in.) | 33.25 |
| Height (in.) | 43.25 |
| Total Capacity (cu. ft.) | 11.23 |
| Color | Stainless Steel |
| Depth w/Door Open 90 Degrees (in.) | 56.5 |
| Door Color | Stainless Steel |
| Handle Color | Black |
| Manufacturer Warranty | 7 Year Warranty on Labor, Parts, & Compressor |
| Door Panel Type | Solid |
| Color/Finish Name | Stainless Steel |
| Appliance Fit Width (in.) | 46 |
| Ice Maker | No |
| Door Swing Option | Left Hinge |
| Depth Type | Standard Depth |
| Defrost System | Automatic |
| Number of Doors | 1 |
| ENERGY STAR Certified | No |
| Commercial Use Approved | Yes |
| Installation Type | Freestanding |
| ADA Compliant | No |
| Smart Compatible | No |
| Shipping Depth (in.) | 48.75 |
| Shipping Width (in.) | 34.75 |
| Shipping Height (in.) | 45 |
| Voltage | 115 |
| Frequency | 60 |
| Amp | 6 |
| Type of Refrigerator | Under The Counter Refrigerator |
| Defrost Type | Auto Defrost |
| Refrigeration General Features | Wheels |
| Overall Height (in.) | 43.25 |
| Freezer Door Type | Swing Door |
| Garage Ready | No |
