Product Dimensions 33.88"h x 46"w x 33.25"d

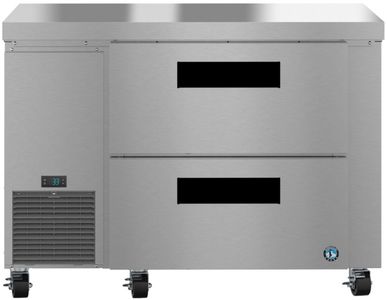

The ULR46B-D2 Steelheart Series Undercounter single section side mount refrigerator with stainless drawers is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions with a net capacity of 11.78 cubic feet this efficient undercounter side mount refrigerator and front air flow design is perfect for hot/tight kitchens.Read More
Innovative air distribution system distributes air evenly to maintain product temperature
Enamel coated evaporator coil for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
The drawer slides are constructed of 14 gauge stainless steel with durable acetal rollers
Extruded aluminum flush mount drawer handles
(2) stainless steel drawers, fully welded construction and securely fastened in the cabinet
Insulated with 2″ CFC free, foamed in place polyurethane
Engineered to maintain food safe temperatures in 100°F ambient conditions
R290 refrigerant
(4) 4″ Stem Casters (2 with brakes) are standard
Nominal Compres. of 1354 BTU/hr at 1/5 HP
115v/60/1, 10 ft. cord and plug
Optional Kits: 2″ or 6″ casters, overshelves (single or double), stainless steel back, drawer divider bars (vertical or horizontal), drawer locks
Drawers Capacity: (2) 12″ x 20″ full size, 6″ deep pans (pans by others)
General Specs | |
| Width (in.) | 46 |
| Depth (in.) | 33.25 |
| Height (in.) | 33.88 |
| Color | Stainless Steel |
| Manufacturer Warranty | 7 Years Labor, Parts and Compressor |
| Collection Code | ULR46B |
| Door Panel Type | Solid |
| Color/Finish Name | Stainless Steel |
| Ice Maker | No |
| Depth Type | Counter Depth |
| ENERGY STAR Certified | No |
| Installation Type | Freestanding |
| ADA Compliant | No |
| Smart Compatible | No |
| Shipping Depth (in.) | 34.75 |
| Shipping Width (in.) | 48.75 |
| Shipping Height (in.) | 36 |
| Voltage | 104-126 |
| Amp | 3 |
| Type of Refrigerator | Under The Counter Refrigerator |
| Overall Height (in.) | 33.88 |
| Garage Ready | No |
Other Dimensions | |
| Voltage | 115/60/1 |
| HACR Breaker | 15.0 Amps |
| Electrical Connection (NEMA) | 5-15P |
| Ambient Temperature Range | 45° to 100°F |
| Control Setpoint Range | 28° to 45°F |
| Energy Consumption (kWh/day) @NSF | 0.92 |
| Heat Rejection (BTU/Hr.) @NSF | 333 |
| Approximate Nominal Compres. BTU/HR (HP) | 1354 (1/5HP) |
| Refrigerant / Charge Amount (oz) | R290 (2.8 oz) |
| Interior Storage Capacity (CF) (AHAM) | 11.78 ft3 |
| Recommended Setpoint | 36°F |
| Drawer Opening Width x Depth | 25.5” x 9” |
| Depth with Drawer Fully Open (including 1” bumper) | 57.5” |
