Product Dimensions 40"h x 48"w x 30"d

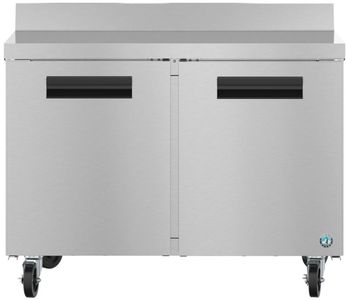

The WF48B Steelheart Series Worktop two section freezer with stainless doors is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions with a net capacity of 12 cubic feet this efficient worktop freezer and front air flow design is perfect for hot/tight kitchens.Read More
Innovative air distribution system distributes air evenly to maintain product temperature
Enamel coated evaporator coil for extended life
Stainless steel exterior (front, sides, top) and a stainless steel interior
Field reversible, spring assisted self closing door with stay open feature (no kit required)
Extruded aluminum flush mount door handle
(2) stainless steel doors with ABS interior liner
Insulated with 2″ CFC free, foamed in place polyurethane
Engineered to maintain food safe temperatures in 100°F ambient conditions
R290 refrigerant
(4) 6″ Stem Casters (2 with brakes) are standard
Nominal Compres. of 2431 BTU/hr at 1/3 HP
115v/60/1, 10 ft. cord and plug
Automatic time-initiated heated defrost
Optional Kits: 2.25″ or 4″ casters, epoxy wire shelf, stainless steel shelf, overshelves, foot pedals, see spec sheet for additional options
General Specs | |
| Width (in.) | 48 |
| Depth (in.) | 30 |
| Height (in.) | 40 |
| Defrost System | Automatic |
| Manufacturer Warranty | 7 Years Labor, Parts and Compressor |
| Color | Stainless Steel |
| Depth w/Door Open 90 Degrees (in.) | 52.5 |
| Installation Type | Freestanding |
| Door Color | Stainless Steel |
| Depth Type | Counter Depth |
| Overall Height (in.) | 40 |
| Door Panel Type | Solid |
| Garage Ready | No |
| Color/Finish Name | Stainless Steel |
| Door Swing Option | Double Doors |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Ice Maker | No |
| Smart Compatible | No |
| Shipping Depth (in.) | 34 |
| Shipping Width (in.) | 52.5 |
| Shipping Height (in.) | 40.5 |
| Voltage | 104-126 |
| Amp | 3.6 |
Other Dimensions | |
| Voltage | 115/60/1 |
| HACR Breaker | 15.0 Amps |
| Electrical Connection (NEMA) | 5-15P |
| Ambient Temperature Range | 45° to 100°F |
| Control Setpoint Range | -10° to 10°F |
| Energy Consumption (kWh/day) @NSF | 3.6 |
| Heat Rejection (BTU/Hr.) @NSF | 756 |
| Approximate Nominal Compres. BTU/HR (HP) | 2431 (1/3HP) |
| Refrigerant / Charge Amount (oz) | R290 (2.6 oz) |
| Door Opening Width x Height | 19.5” x 23” |
| Shelf Dimensions (W x D) | 21.38” x 16” |
| Interior Storage Capacity (CF) | 13.66 ft3 |
| Interior Storage Capacity (CF) (AHAM) | 12 ft3 |
