Product Dimensions 24"h x 22.25"w x 24.13"d

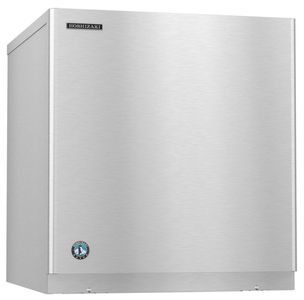

The KMD-410MAJ is capable of producing approximately 418 lbs of crescent cubed ice. Hoshizaki’s efficient double-sided KMEdge™ stainless steel evaporators create its unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in busy self-serve areas, fast food restaurants, employee break rooms and more.Read More
Up to 418 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes
R-404A refrigerant (1 lbs. 0.9 oz. / 479 g)
Clean ice and easy maintenance lead to longer unit life span
Compatible bins and dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900, DB-130H
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 8.2, Max Fuse/HACR Breaker: 20 A
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 5500 BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 0.9 oz. / 479
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
5.7 kWh per 100 lbs @ 90/70, 23.7 gal of Potable Water per 100 lbs @ 90/70
General Specs | |
| Depth (in.) | 24.13 |
| Height (in.) | 24 |
| Color | Stainless Steel |
| Commercial Use Approved | Yes |
| Series | Crescent® Cuber |
| Color/Finish Name | Stainless Steel |
| Installation Type | Freestanding |
| Overall Height (in.) | 24 |
| Garage Ready | No |
| Production Rate Ice (lb./day) | 418 |
| Width (in.) | 22.25 |
| Manufacturer Warranty | 3 Years Parts & Labor on Entire Machine / 5 Years on Parts & Labor on Evaporator |
| Outdoor Approved | No |
| ENERGY STAR Certified | No |
| Appliance Fit Width (in.) | 22.25 |
| Smart Compatible | No |
| Wifi Capable | No |
| Defrost System | Manual |
| ADA Compliant | No |
| Locking Door | No |
| Product Weight (lbs.) | 126 |
| Voltage | 115 |
| Frequency | 60 |
| Amp | 8.2 |
| Number Of Possible Ice Cube Shapes | 1 |
| Ice Type | Crescent |
| Door Panel Type | Solid |
