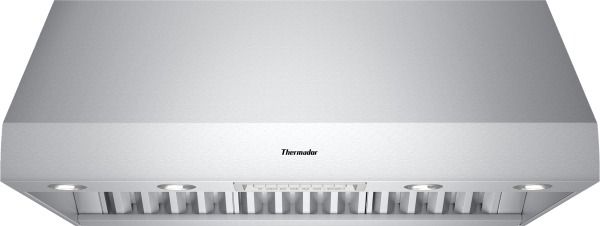

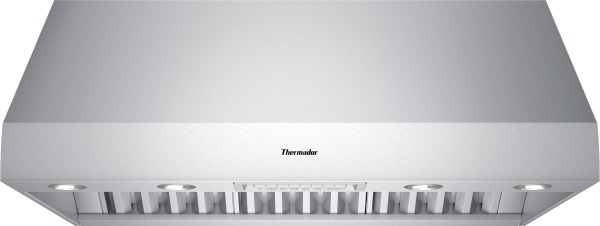

Thermador® Professional Series 48" Wall Ventilation-Stainless Steel (INV: 29623)


Model #:

PH48GS-B

Model #: PH48GS-B
1745255
Thermador
$1,829.00
OUTLET CENTER
OUT-OF-BOX (B)

At a Glance

Product Dimensions 18"h x 48"w x 27"d

Thermador® Professional Series 48" Wall Ventilation-Stainless Steel with two heat lamps and three fan speedsRead More

Sale $1,829.00

$2,199.00

Save $370.00

Get to know this product.

Product Overview

Product Overview

Sleek Design

  • Chiseled design and recessed control panel with square buttons for seamless integration into any kitchen

Heat Lamps

  • Two heat lamps conveniently keep food warm until serving time

Performance

  • Three fan speeds
  • Auto function senses heat from the cooking surface and adjusts fan speeds
  • Powerfully quiet ventilation systems
  • Extended capture area ensures removal of smoke and odor
  • Built-in 'Clean Filter' reminder light illuminates after 40 hours of operation
  • Delayed shut off tackles lingering odors for up to 10 minutes
  • Dimmer lighting - for a soft lighting effect
  • Two Infrared Keep-Hot Lamps hold food warm until serving time
  • Dishwasher safe stainless steel baffle filters
  • Dishwasher safe grease collection trays are easily removed
  • Filter systems are highly efficient at capturing grease
  • Vertical or horizontal ducting direction
  • Seven different blowers to choose from the line up according to cooking needs
  • Choose from Inline, Remote or Integrated Blowers
  • Blowers sold separately
  • Hood includes filters, backdraft damper and transition
  • Approved by CSA/UL for damp environments

Design

  • 27" depth hood is a perfect companion to the Pro Grand professional range
  • Chiseled design for a seamless integration into any kitchen
  • Brushed stainless steel finish
  • Halogen lighting spotlights your best recipes
  • Easy to view recessed control panel with stainless steel buttons
  • Stainless steel professional style baffle filters
Useful Documents
Specifications

General Specs

Width (in.)48
Height (in.)18
Duct Size (in.)10
Depth (in.)27
ColorStainless Steel
Color Finish NameStainless Steel
Appliance Fit Width (in.)48
Product Weight (lbs.)98
Voltage120
Frequency60

Construction

Exhaust:Ducted
Chimney:Fixed
Ductwork Type:Vertical and Horizontal

Dimensions

Shipping Weight:110
Max Height Above Cooktop:30

Display

Controls:Mechanical

General Features

Filter Type:2 Washable Grease Filters
Pollutant Removal:Externally Vented

Other

Number of Lights:2
Settings:2
Air Mover(s) Speed:3

Styling

Design:Pro Style
