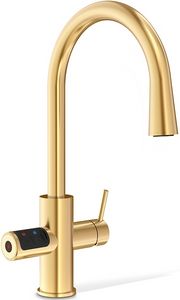

Zip® Water HydroTap Celsius Plus Boiling, Chilled Kit in Brushed Gold
At a Glance
Zip HydroTap Boiling, Chilled for Residential and Small Commercial - Kitted Base Module with Celsius Plus Tap - Brushed Gold. Kit includes tap (01045841) and Command Center (01043465).Read More
Get to know this product.
Product Overview
Product Overview
HydroTap Celsius Plus All-in-One (AIO)
Form meets function with the HydroTap Celsius Plus All-in-One (AIO). Intended for installation over a sink in the kitchen or wet bar, the Celsius Plus AIO instantly dispenses filtered boiling and chilled water, plus unfiltered hot & cold water. And it’s all wrapped up in an enduringly stylish design.
So whether you are looking to upgrade your home hydration or you want the convenience of cooking made easy, the HydroTap Celsius Plus AIO is the perfect tap to meet your needs. The Celsius Plus AIO is available in six luxury finishes from our classic chrome to stylish brushed gold and gunmetal to complement any kitchen or wet bar.
HydroTap 120V BC G5 Command Center
The HydroTap by Zip Water is more than just a water system, it’s cooking made easy and it’s water at its best. That’s because the HydroTap 120V BC command center provides users instant access to filtered boiling and chilled water.
This command center is ideal for residential and small commercial applications and can be paired with any of the various tap styles.
Installation Requirements
Installation and connection of your HydroTap must be carried out by a qualified person, observing all local, state, & federal regulations. You will require suitable 110 -120V 50-60Hz, 15 amp power supply with a NEMA 5-15 electrical outlet within 5’ 9” (1.75m) of the product.
The HydroTap is a pump-driven system so the installation of the Tap must be within 3’ (0.9m) of the base command center. The HydroTap is an air-cooled system so discrete cabinetry cut-outs are required for ventilation. Installation on most countertops is straightforward however, some stone countertops may require a specialized cutting service.
If using a drip tray (font) accessory, suitable drainage to a trapped waste is required within 3’ (0.9m) of the installation. If you live in an area with hard water (more than 150ppm), we recommend installation of a scale filtration kit or a water softener. Sufficient space and clearance to install the HydroTap as detailed in the product installation guidelines is required.
Useful Documents
Specifications
General Specs | |
| Material | Metal |
| Collection | Celsius Plus |
| Handle Style | Lever |
| Plumbing Installation Type | Deck Mounted |
| Spout Height | 17.3 |
| Number Of Faucet Handles | 1 |
| Color | Gold |
| Series | HydroTap |
| Color/Finish Name | Brushed Gold |
| Flow Rate | 1.8 |
| Spout Reach | 8.9 |
HydroTap Celsius Plus AIO BC 120V - Tap/Faucet Technical Specs | |
| Style: | HydroTap Celsius Plus All-in-One (AIO) BC 120V |
| Hole Size: | 2” / 50mm |
| Tap Height: | 17.3” / 440mm |
| Installation: | Over the sink as the primary faucet |
| Flow Rate: | Max 1.8gpm / 6.8lpm |
| Sparkling Water Flow Rate: | 0.4 gpm / 1.51 lpm |
| Mixer Type: | Ceramic disc cartridge |
| Water outlets: | Installation requires both hot and cold water supplies |
| Clearance for handle: | Minimum distance from center hole to wall: 3 7 /16” (88mm) |
HydroTap 120V BC G5 Command Center - Product Specs | |
| Product Order Code: | 01043465 |
| Water Pressure: | Min 37psi – Max 100psi (2.60 - 7.03kg/cm2 ) with a minimum flow rate of 1 gpm (3.79 lpm) |
| Water Connection: | ½” BSP - isolation valve is required within 3’ (0.9m) of the installation |
| Integral Water Values: | All HydroTap systems are fitted with a Dual Check Valve and a 50psi (3.52kg/cm2 ) Pressure Limiting Valve |
| Water Supply Requirements: | Potable drinking water supply |
| Optimal Total Dissolved Solids (TDS) Range: | TDS Min 50ppm – Max 150ppm |
| Integral Water Filter: | 0.2 micron, 1 size - replace every 1,100 gallons / 4,163 liters or 12 months |
| Power Rating: | 110-120V, 50-60Hz, 15 amp power supply with a NEMA 5-15 outlet |
| Dimensions (WxDxH): | 13.3” x 18.2” x 13.1” / 339mm x 462mm x 333mm |
| Minimum Air Gap: | Minimum of 2” / 50mm clearance on left and right side and 8” / 200mm above |
| Minimum Cabinet Size: | 18” wide x 24” deep / 457mm wide x 609mm deep |
| Maximum Hose Connection Length: | 3’ / 0.9m (tap to command center) |
| Minimum Distance Needed for Installation: | 15” / 381mm (interior wall to garbage disposal) |
| Dry Weight: | 66lbs / 30kg |
| Product Approvals: | IAPMO - NSF/ANSI 372, 42, 53, CSA B483.1, ASSE 1023, ASSE 1087; cUL; CEC |
| Warranty: | 2-year limited parts and labor warranty |
